Mondraker Chrono Carbon DC RR Semi-Rigid Mountain Bike Sram GX/NX Eagle 12V 29'' Black/Purple 2025

118.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          The first model in the Chrono Carbon DC RR range.
          The only model with a 34 mm fork, this bike is equipped with a Fox 34 Step Cast Float FIT4 EVOL Factory Kashima fork with remote locking, Sram Level T brakes, Onoff Pija down tube (with 120 to 170 mm travel depending on frame size) and Maxxis Ardent 29x2.4" EXO tires.

          Product highlights:

          • Stealth full-carbon frame, XC Forward Geometry.
          • Fox 34 Step Cast Float Fit4 Evol fork, 120 mm travel.
          • Sram GX/NX Eagle 1x12-speed transmission.
          • Sram Level T hydraulic disc brakes, 180/160 mm.

          Details :

          Frame Carbon: Chrono 29 Stealth Full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, specific design for single-disc drivetrain, shock mudguard, Flatmount brake compatible
          Forks Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120 mm, tapered fork steerer, Boost Kabolt 15x110 mm axle, 44 mm offset. Adjustments: 3 push-to-lock remote positions, low-speed compression micro-adjustment, rebound, pneumatic preload
          Derailleur lever Sram Trigger NX Eagle, 12s, X-Actuation 1:1
          Rear derailleur Sram GX Eagle, Roller bearing clutch Type 3, cage lock, 1x12s, X-Actuation 1:1
          Cassette Sram PG-1230, 11-50 teeth, 12 speeds
          Chain Sram SX Eagle, 12 speeds, Powerlock
          Crankset Sram GX Eagle, Boost, DUB axle, direct-mount chainring, size S: 170 mm size M: 175 mm size L: 175 mm, size XL: 175 mm, CL 55, Sram 34-tooth chainring, CNC-machined alloy, X-Sync 2
          Bottom bracket Sram DUB BSA, sealed bearings, 73 mm
          Brakes Sram Level T, 2-piece caliper, single-piece 6-hole Centerline 180/160 mm IS disc, organic steel pads
          Wheels Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless compatible, 24 spokes
          Hubs Front: Mavic Infinity, Boost Mavic Infinity, Boost 15x110 mm, IS 6 holes / Rear: Mavic infinity, ID360 freewheel, Boost 12x148 mm, IS 6 holes, HG freehub
          Tires Maxxis Ardent 29x2.40, double rubber, EXO, tubeless compatible, 60TPI, soft bead wire
          Handlebars Onoff Sulfur 0.2, double-reinforced 6061 alloy, curvature: 4.8 mm, width: 760 mm, bend 9º, rise 0º, bore 31.8 mm
          Handles Onoff Desert, 1lock-on, 135 mm
          Stem MDK, 6061 T6 Alloy, 31.8 mm bore, curve: +/-5º, length: size S: 50 mm, size M: 50 mm, size L: 60 mm, size XL: 70 mm
          Headset Onoff internal IS52 1-1/2, ACB sealed bearings, upper 51.8x40 45°x45°, lower 51.8x40 36°x45°
          Saddle Mondraker MDK series, SRX, steel rail
          Seat post Onoff Pija dropper internal, diameter 31.6 mm, universal lever, size S: 405x95-125mm, size M: 458x120-150mm, size L: 498x140-170 mm, size XL: 498x140-170 mm
          Weight 11.6 kg

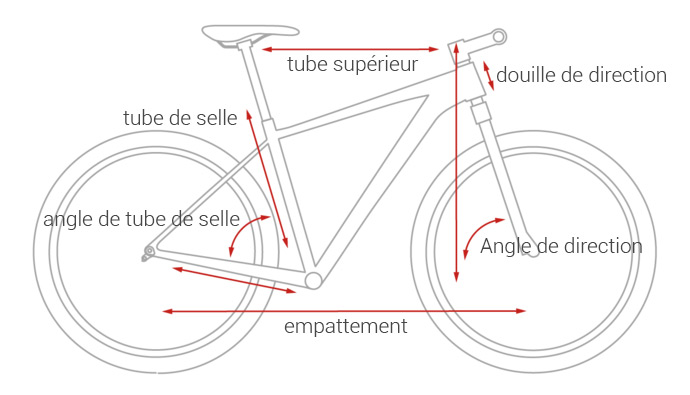

          Geometries :

          Frame size S M L XL
          Wheel size (inches) 29 29 29 29
          Seat tube (mm) 395 430 470 520
          Top tube (mm) 597 614 640 655
          Base length (mm) 430 430 430 430
          Steering bushing (mm) 90 100 110 120
          Steering angle (°) 67.5 67.5 67.5 67.5
          Seat tube angle (°) 71.5 71.5 71.5 71.5
          Wheelbase (mm) 1130 1149 1173 1192
          Stack (mm) 620 629 639 647
          Reach (mm) 425 440 460 475

          MORE INFORMATION

          Features

          Gender Men
          Women
          Frame material Carbon
          Groupset Sram GX/NX Eagle
