  • Tomahawk® 1000 Plasma Cutter with 25 ft (7.6 m) Hand Torch

Tomahawk® 1000 Plasma Cutter with 25 ft (7.6 m) Hand Torch

126.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          The Tomahawk® 1000 plasma cutting system is ideal for plasma cutting and gouging materials including mild steel, brass, stainless steel, copper, and aluminum.

          Features & Benefits

          Plasma Cutting for Production Capacity

          The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

          Features

          • PowerConnect® Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
          • Continuous Output Control - Focus the arc for different material thicknesses.
          • Touch Start™ System - Reliable plasma arc initiation without high frequency.
          • Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.
          • Cool Operation, Long Consumable Life- New electrode and nozzle design save you money in the long run
          • Added Safety - Our Parts-in-Place™ - System detects correct installation of consumables and torch.
          • Engine Drive Compatible - Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
          • Optional Machine Torch - Available for use on CNC plasma cutting tables.

          Processes
          Plasma Cutting & Gouging
          Air Pressure Required
          87-109 PSI
          Compressor Included
          No
          Digital Display
          No
          Dimensions (mm)(HxWxD)
          15.2" x 8.5" x 22.1"
          Duty Cycle
          50% 60A@104V | 100% 40A@96V
          Included in Package
          LC65 hand torch 25 ft. (7.5 m) cable; Air regulator and pressure gauge; Internal water separator; Work clamp and cable; Spare consumables; Input power cord
          Model
          Tomahawk® 1000
          Weight (lb)
          45 LB
          Input Power
          208-575/1/3/50/60
          Input Current
          37.8A
          Polarity
          DC
          Output Range
          20-60A
          Rated Output
          40A@96V 100%|60A@104V 50%
          Typical Application
          On-site maintenance; Service tasks; Construction sites; Demolition work; Rental; Production/Fabrication; Robotic plasma cutting

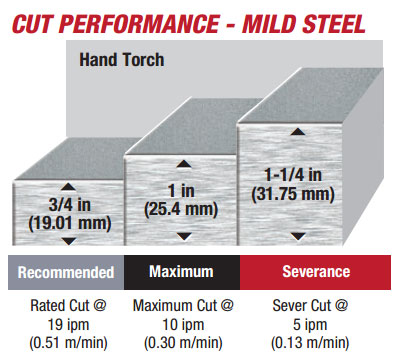

          Maximum Cut
          1 in. (25.4 mm)
          Recommended Cut
          3/4 in. (19.01 mm)
          Severance Cut
          1 1/4 in. (31.75 mm)
          Dimensions
          8.5in x 15.2in x 22.1in (215mm x 385mm x 561mm)
          Warranty
          3 year warranty
          Weight
          70lbs. (31.752kg)
          • Pilot Current: 20A
          • Air Pressure Required: 87 - 109 psi (6 -7.5 Bar)
          • Air Flow Rate: 80 psi @ 275 - SCFH, 5.5 Bar @ 130 Liters / min.
          • LC65 hand torch and 25 ft. (7.5 m) cable with electrode | nozzle 60A | swirl ring | retaining cap | drag spacer, Air regulator and pressure gauge, Internal water separator, Work clamp and cable, Spare consumables include (2) electrodes | (2) nozzles | (1) swirl ring, Input power cord
